Phenolic Khoom siv rau cov khoom siv kho tshuab

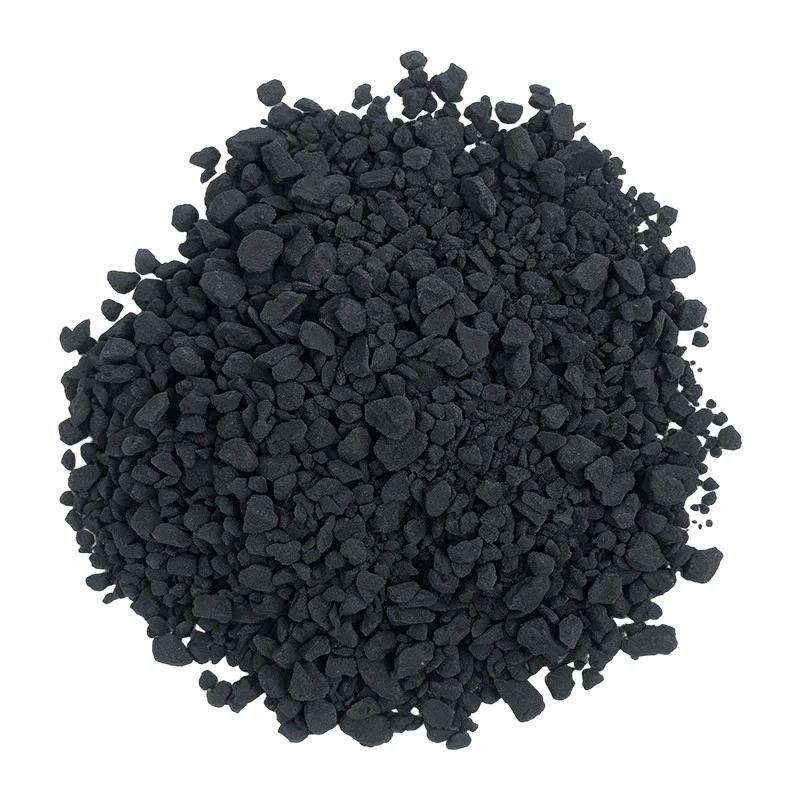

Qauv 7601-C yog cov khoom siv thermoset molding siv los tsim cov khoom siv tshuab molded. Nws tuaj yeem ua tiav los ntawm kev txhaj tshuaj molding lossis hloov molding.
Cov khoom siv tuaj yeem sib xyaw nrog cov khoom siv kho tshuab ntawm cov qauv sib txawv, qhov ntev, thiab cov voj voog ntau lawm. Nws flowability tuaj yeem sib tham raws li pwm tsim thiab cov pwm pwm tiag tiag.
Mechanical Parts Phenolic Resin yog npaj rau cov khoom uas ua haujlwm txhawb nqa, sib txuas, lossis lwm yam haujlwm ua haujlwm hauv tshuab. Nws ua ke txhua yam muaj zog, tiv thaiv tshav kub, nplaim taws, hluav taws xob, thiab molding stability.
Cov kev ntsuam xyuas zoo xws li qhov ua tiav - qhov ntev, qhov chaw thauj khoom, txoj kev sib dhos, kev ua haujlwm kub, pwm qauv, thiab cov khoom siv ua tiav.
Kev ua tau zoo rau Moulding thiab Assembly
Qauv 7601-C muab lub zog flexural tsawg kawg yog 80 MPa thiab lub zog tensile ntawm kev tawg yam tsawg 50 MPa.
Charpy qhov cuam tshuam lub zog yog tsawg kawg yog 1.3 kJ / m², thaum lub zog tsis muaj zog Charpy yog tsawg kawg yog 5.0 kJ / m². Qhov kev sib xyaw ua ke no txhawb nqa kev ncaj ncees ntawm cov khoom molded thaum lub sij hawm demolding, sib dhos, kev thauj mus los, thiab kev siv ib txwm.
Lub tshav kub deflection kub nyob rau hauv load, Ti 1.8, yog tsawg kawg yog 160 degree. Cov khoom kuj nce mus txog UL94 V-0 flammability ntsuam xyuas.
Nws qhov kev tiv thaiv saum npoo yog tsawg kawg yog 10¹⁰ Ω, thiab qhov tsis zoo ntawm dielectric poob ntawm 100 Hz yog tsis ntau tshaj 0.10. Cov khoom no tso cai rau cov khoom siv los muab cov rwb thaiv tsev thiab nplaim hluav taws ua haujlwm ntxiv rau nws lub luag haujlwm.
Dimensional Planning thiab Nruam ntau lawm
Cov molding shrinkage ntau yog 0.5% mus rau 0.9%. Kev nqus dej tsis ntau tshaj 100 mg, thiab qhov ceev yog nyob nruab nrab ntawm 1.40 thiab 1.50.
Cov kev txwv no txhawb kev them nyiaj pwm, kev npaj ib feem, thiab kev tswj cov khoom hnyav. Cov khoom siv flowability kuj tuaj yeem hloov kho raws li qhov tseeb molding thiab cov yam ntxwv ntawm cov khoom siv kho tshuab.
Zhejiang Naso Synthesis Co., Ltd. muaj kev paub txog kev tswj hwm pab pawg, cov kws tshaj lij engineers, thiab cov neeg ua haujlwm tsim khoom. Lub tuam txhab siv 6S kev tswj chaw ua haujlwm rau kev tsim khoom.
Kev tsim khoom, kev tshuaj xyuas zoo, ntim khoom, thiab xa khoom yog ua raws li cov neeg ua haujlwm lub luag haujlwm los ntawm kev txiav txim tso rau kev xa khoom.
Kev yuav khoom rau kev txiav txim rov qab
Qhov kev txiav txim yam tsawg kawg nkaus yog 1,000 kg. Cov xim sib txawv lossis cov qauv yuav raug muab tso ua ke hauv tib qhov kev txiav txim yam tsawg kawg nkaus tom qab sib tham.
Kev tsim cov khoom lag luam ib txwm siv sijhawm kwv yees li 7 hnub. Rau kev txiav txim rov qab, kev npaj ntau lawm tuaj yeem txuas nrog cov ntaub ntawv ntawm kev txiav txim yav dhau los. Qhov no pab cov neeg tsim khoom tshuaj xyuas cov khoom lag luam uas twb muaj lawm thiab cov ntaub ntawv xaj thaum npaj cov khoom txuas ntxiv.
Mechanical Parts Phenolic Resin model 7601-C muab cov chaw tsim khoom nrog cov ntaub ntawv ua tiav, lub zog, cua sov, nplaim taws, hluav taws xob, thiab cov ntaub ntawv lub cev rau cov khoom siv tshuab molded-ib feem.
Kev ntsuam xyuas tus qauv yuav tsum ua kom tiav raws li qhov tseeb ntawm cov qauv, pwm, cov cuab yeej ua haujlwm, thiab qhov chaw ua haujlwm ua ntej kev tsim khoom tas mus li.
Khoom Specifications
|
Parameter |
Specification |
|
Yam khoom qauv |
7601-C |
|
Xim |
Dub |
|
Txoj Kev Molding |
Txhaj tshuaj molding lossis hloov molding |
|
Mechanical Properties |
Flexural zog Ntau dua los yog sib npaug rau 80 MPa; tensile kev ntxhov siab thaum tawg Ntau dua lossis sib npaug li 50 MPa |
|
Cov khoom cua sov thiab nplaim taws |
Kub deflection kub siab tshaj los yog sib npaug rau 160 degree; UL94 V-0 |
|
Lub cev muaj zog |
Pwm shrinkage 0.5% -0.9%; ceev 1.40-1.50 |
