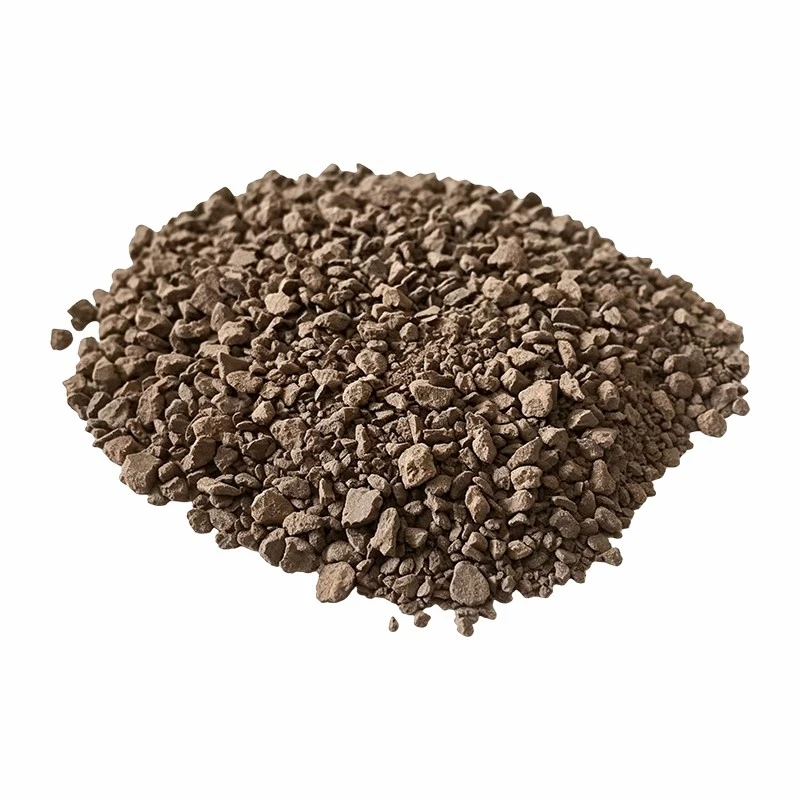

Brown Phenolic Khoom siv rau kev ua haujlwm Moulded Parts
Ntoo-xim av Phenolic Moulding Compound yog cov khoom siv thermoset phenolic molding nrog cov tsos xim av. Nws yog tsim rau molded Cheebtsam uas yuav tsum tau ib tug ua ke ntawm tej xim, txhua yam muaj zog, kub tsis kam, nplaim tsis kam, thiab hluav taws xob rwb thaiv tsev.
Cov khoom txhawb kev txhaj tshuaj molding thiab hloov molding. Nws tuaj yeem siv rau cov khoom siv hluav taws xob, qhov chaw rwb thaiv tsev, thiab lwm yam khoom siv molded hauv cov khoom siv hluav taws xob, cov cuab yeej hluav taws xob, kev tsim khoom, thiab cov khoom siv hauv tsev uas yuav tsum muaj cov khoom siv xim av.
Rau cov khoom lag luam uas siv cov xim sib txawv rau kev txheeb xyuas cov tsos lossis kev teeb tsa cov khoom, cov ntoo - xim av kuj tseem muab cov tuam txhab thiab cov neeg yuav khoom ib qho kev xaiv ntxiv rau kev npaj ntau lawm thiab xim sib xws.
Mechanical, Thaum tshav kub kub, thiab nplaim taws Performance
Cov ntaub ntawv muab lub zog flexural tsawg kawg yog 80 MPa thiab lub zog tensile ntawm kev tawg yam tsawg 50 MPa, muab cov qauv kev txhawb nqa rau cov khoom molded.
Nws qhov kev cuam tshuam Charpy muaj zog tsawg kawg yog 1.3 kJ / m², thaum lub zog tsis muaj zog Charpy yog tsawg kawg yog 5.0 kJ / m². Cov txiaj ntsig no txhawb cov kev xav tau ntawm cov khoom siv thaum lub sij hawm demolding, sib dhos, ntim, thiab siv ib txwm.
Lub tshav kub deflection kub nyob rau hauv load, Ti 1.8, yog tsawg kawg yog 160 degree. Cov khoom kuj nce mus txog UL94 V-0 flammability ntsuam xyuas. Qhov kev sib xyaw ua ke no tso cai rau Wood-xim av Phenolic Molding Compound los muab cov khoom siv ua haujlwm ua ke nrog cov lus hais txog cua sov thiab nplaim taws rau kev siv molding txuas ntxiv.
Hluav taws xob thiab lub cev muaj zog
Qhov kev tiv thaiv saum npoo yog tsawg kawg yog 10¹⁰ Ω, thaum lub dielectric poob qhov tseem ceeb tanδ ntawm 100 Hz tsis ntau tshaj 0.10. Cov khoom no muab cov khoom siv hluav taws xob zoo rau kev rwb thaiv tsev thiab hluav taws xob molded Cheebtsam.
Cov molding shrinkage ntau yog 0.5% mus rau 0.9%. Kev nqus dej tsis ntau tshaj 100 mg, thiab qhov ceev yog nyob nruab nrab ntawm 1.40 thiab 1.50.
Cov kev txwv no tuaj yeem pab txhawb pwm qhov kev npaj, kev tswj qhov hnyav, qhov nyiaj seem, thiab kev tswj cov pwm pwm. Txhaj tshuaj molding thiab hloov molding muab kev xaiv rau cov pwm sib txawv thiab cov khoom siv ntau lawm.
Kev tswj ntau lawm thiab hloov xim xaj
Zhejiang Naso Synthesis Co., Ltd. tau tsom mus rau phenolic molding tebchaw thiab lwm yam thermoset hluavtaws cov ntaub ntawv txij li xyoo 2006. Nws qhov chaw tsim khoom npog thaj tsam li 40,000 square metres thiab muaj peev xwm tsim tau txhua xyoo ntawm kwv yees li 20,000 tons rau phenolic molding tebchaw thiab lwm yam ntaub ntawv.
Lub tshuab tsis siv neeg batching thiab DCS automated tswj system yog siv los tswj cov khoom siv raw thiab cov txheej txheem tseem ceeb. Cov neeg ua haujlwm zoo yog lub luag haujlwm rau kev tswj hwm kev tsim khoom. Kev tshuaj xyuas 100% ua tiav ua ntej ntim, thiab kev tshuaj xyuas thib peb - tuaj yeem lees txais.
Qhov kev txiav txim yam tsawg kawg nkaus yog 1,000 kg. Cov qauv tuaj yeem muab tau ua ntej ntau lawm, thiab kev tsim khoom kuj tuaj yeem ua haujlwm raws li cov neeg siv khoom kos duab lossis cov qauv siv lub cev.
Cov xim sib txawv lossis cov qauv sib txawv tuaj yeem ua ke hauv tib qhov kev txiav txim yam tsawg kawg nkaus. Cov khoom lag luam ib txwm xav tau kwv yees li 7 hnub rau kev tsim khoom, thaum cov khoom lag luam customized ib txwm xav tau 20 hnub. Cov duab lossis yeeb yaj kiab tuaj yeem muab tau thaum lub sijhawm tsim khoom.
Export ntim tuaj yeem kho raws li kev thauj mus los thiab kev thov. EXW, FOB, thiab DDP cov nqe lus kev lag luam tau txais kev txhawb nqa, thiab kev them nyiaj tuaj yeem ua hauv RMB lossis US las.
Khoom Specifications
|
Parameter |
Specification |
|
Xim |
Xim av |
|
Mechanical Properties |
Flexural zog Ntau dua los yog sib npaug rau 80 MPa; tensile kev ntxhov siab thaum tawg Ntau dua lossis sib npaug li 50 MPa |
|
Cov khoom cua sov thiab nplaim taws |
Thaum tshav kub kub deflection kub, Ti 1.8 Ntau tshaj los yog sib npaug rau 160 degree; UL94 V-0 |
|
Cov khoom hluav taws xob |
Surface resistivity Ntau dua lossis sib npaug ntawm 10¹⁰ Ω; tanδ ntawm 100 Hz Tsawg dua lossis sib npaug rau 0.10 |
|
Moulding thiab Physical Properties |
Txhaj lossis hloov molding; shrinkage yog 0.5% -0.9%; ceev 1.40-1.50 |
